Model | Article no. | Declaration of performance |
---|---|---|

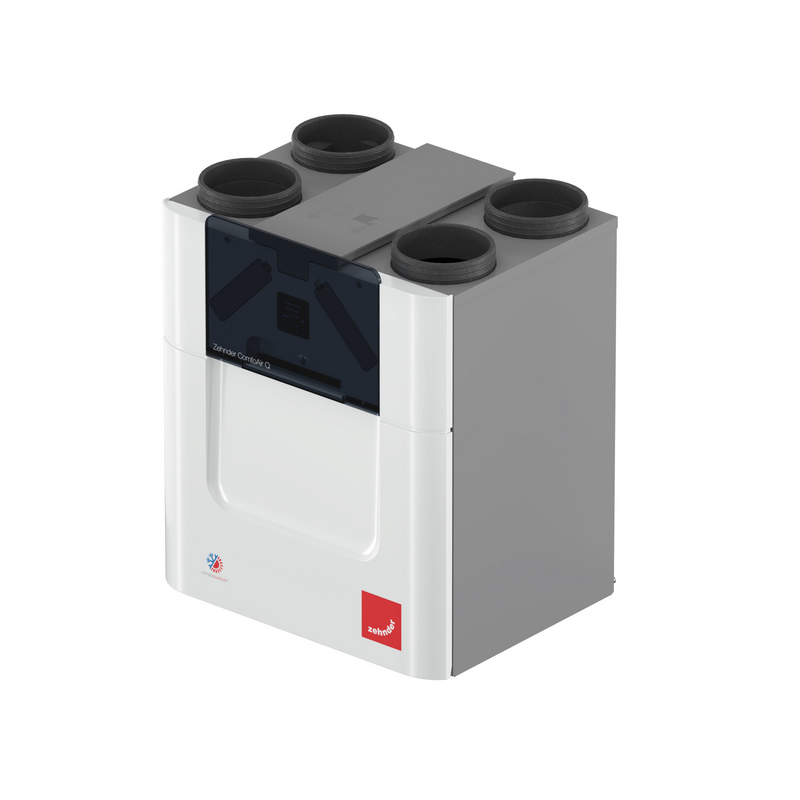

CAQ600-R-ST-GB - Zehnder ComfoAir Q600 | 471502023 | 1603044Q60010.pdf(47 KB) |
Control | Energy class | Energy label |
Energy Label – Central demand control | GB-label_CAQ600_471502023_A.pdf(91 KB) | |
Energy Label – Manual control | GB-label_CAQ600_471502023_A.pdf(91 KB) | |
Energy Label – Local demand control | GB-EU-label_CAQ600_471502023_A+.pdf(142 KB) | |
Energy Label – Clock control | GB-label_CAQ600_471502023_A.pdf(91 KB) |
Label | Value |
---|---|
Catalogue number | 471502023 |
GTIN | 8717573874434 |
Production model | COMFOAIR Q600 GB ST |
Air flow rate | 600 m³/h |
Amperage | 2.7 A |
Supply voltage | 230 V |
Frequency | 50 Hz |
Noise/Sound Level | 51 |
Energy class I | A |
Energy class II | A+ |
With volatile organic compound (VOC) sensor | |
Housing material | Steel |
Material heat exchanger | Other |
Suitable for wired control unit | |
Suitable for (extra) carbon dioxide (CO2) sensor | |
Connections outdoor air side | Insert-/duct end |
With wired control unit | |
Type of speed control | Other |
Max. air volume at 100 Pa | 600 m³/h |
Nominal duct diameter | 180-200 mm |
Suitable for wall mounting | |
With thermal overload protection | |
Nominal duct diameter | 180-200 mm |
Height | 850 mm |
Type of motor | Electronically commutated (EC) |
With bypass | |
Supporting protocol for Modbus | |
Material housing | Steel coated |
Depth | 570 mm |
Degree of protection (IP) | IP40 |
Efficiency supply filter according to ISO 16890-1:2016 | 65 % |
Suitable for floor mounting | |
Weight | 47 kg |
Width | 725 mm |
Type of motor | Electronically commutated (EC) |
Power consumption at max. air volume at 100 Pa | 0.258 kW |
Width | 725 mm |
Energy efficiency class | A+ |
Suitable for zone controller | |
With constant pressure control | |
With heating element | |
Suitable for (extra) humidity (RH) sensor | |
Suitable for zone controller | |
Thermal efficiency at 70 % air volume at 50 Pa | 90 % |
Suitable for central heating boiler connection | |
Efficiency supply filter according to ISO 16890-1:2016 | 65 % |
Roof connection, top | |
Housing material quality | Other |
Roof connection, side | |
Frequency | 50 Hz |
Suitable for ceiling mounting | |
Left/right orientation reversible | |
Number of phases | 18 |
Max. air volume at 200 Pa | 600 m³/h |
Heat recovery by | Cross-counter-flow unit |
Housing material quality | Other |
Max. air volume at 150 Pa | 600 m³/h |
Max. air volume at 50 Pa | 420 m³/h |
Residential connection, left side | |
Electrical connection | Connecting cord with plug with protective contact |
Residential connection, underside | |
Suitable for wired control unit | |
Residential connection, top | |
Suitable for extra VOC sensor | |
Residential connection, right side | |
With heating element | |
Suitable for wireless remote control | |
Type of frost protection | Other |
With internal carbon dioxide (CO2) sensor | |
Width | 725 mm |
Nominal duct diameter | 180-200 mm |
Cos phi according to EPN standard | 0.54 |
Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
With digital display | |
Supply filter according to ISO 16890-1:2016 | ISO Coarse |
Depth | 570 mm |
With internal humidity (RH) sensor | |
Height | 850 mm |
Fuse size of the device | 16 A |
With zone controller | |
Thermal efficiency according to EPN standard | 90 % |
Height | 850 mm |
Power input according to EPN standard | 0.174 kW |
Weight | 47 kg |
Depth | 570 mm |
With bypass | |
Suitable for (extra) carbon dioxide (CO2) sensor | |
Suitable for wall mounting | |
Thermal efficiency at 70 % air volume at 50 Pa | 90 % |
With thermal overload protection | |
Frequency | 50 Hz |
Suitable for floor mounting | |
Efficiency exhaust filter according to ISO 16890-1:2016 | 65 % |
Suitable for central heating boiler connection | |
Operation by app | |
Max. air volume at 100 Pa | 600 m³/h |
Heat recovery by | Cross-counter-flow unit |
Suitable for wireless remote control | |
Voltage | 230 V |
With digital display | |
Suitable for ceiling mounting | |
Residential connection, left side | |
Left/right orientation reversible | |
Residential connection, underside | |
Power consumption at max. air volume at 100 Pa | 0.258 kW |
Residential connection, top | |
Energy efficiency class (1253/2014/EU) | A+ |
Residential connection, right side | |
Electrical connection | Connecting cord with plug with protective contact |
Roof connection, top | |
Housing material | Steel |
Roof connection, side | |
Suitable for extra VOC sensor | |
Max. air volume at 150 Pa | 600 m³/h |
Energy efficiency class (1253/2014/EU) | A+ |
Max. air volume at 200 Pa | 600 m³/h |
Max. air volume at 50 Pa | 420 m³/h |
Supply filter according to ISO 16890-1:2016 | ISO Coarse |
Electrical connection | Connecting cord with plug with protective contact |
Voltage | 230 V |
With internal carbon dioxide (CO2) sensor | |
Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
Type of motor | Electronically commutated (EC) |
Weight | 47 kg |
With zone controller | |
With internal humidity (RH) sensor | |
With wired control unit | |
Suitable for (extra) humidity (RH) sensor | |
With volatile organic compound (VOC) sensor | |
Frequency | 50 Hz |
Degree of protection (IP) | IP40 |
With constant pressure control | |
Fuse size of the device | 16 A |
With constant volume flow control | |
Supporting protocol for Modbus | |
Type of frost protection | Other |
With constant volume flow control | |
Connections residential side | Insert-/duct end |
Connections residential side | Insert-/duct end |
Connections outdoor air side | Insert-/duct end |
Voltage | 230 V |
Efficiency exhaust filter according to ISO 16890-1:2016 | 65 % |
Number of phases | 1 |
