Controls, Sensors & Connectivity

Zehnder

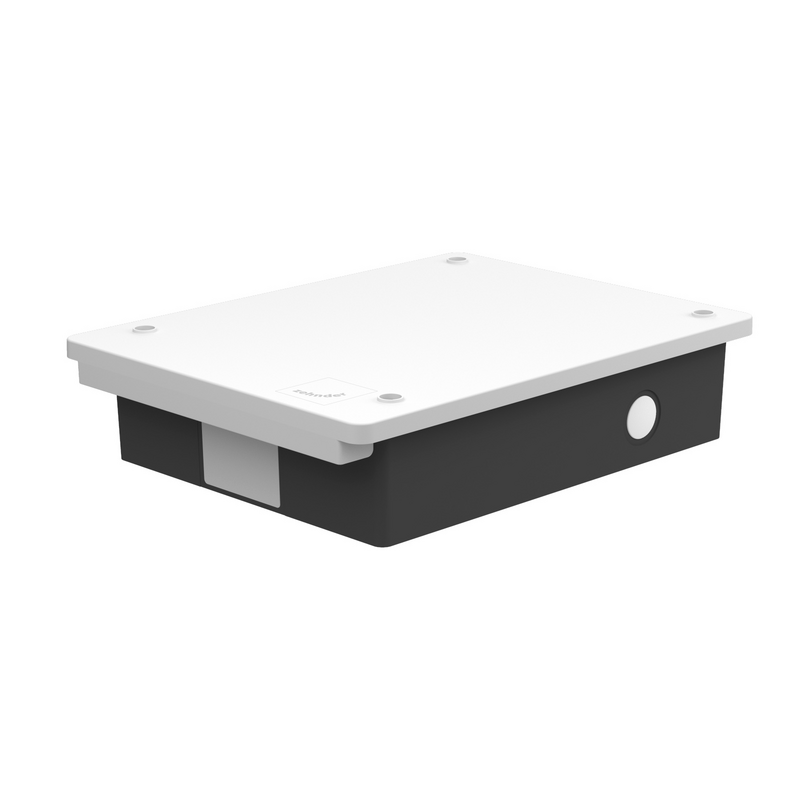

Option Box V2 / V2 Lite

    The Zehnder Option Box V2 enhances the functionality of Zehnder ComfoAir Q ventilation unit range. It provides various input and output contacts to support additional functionality of the ventilation system. The product is available in two configurations: 1. Option Box V2. Includes a pre-installed 230V power cable and supports all functions without limitations. 2. Option Box V2 Lite. Supplied without a 230V power cable, it supports all functions except for ComfoFond L Q, a sub-soil heat exchanger valve, and ComfoHood.

    Benefits

    • For use with ComfoAir Q350/450/600 / Comfort Vent Q / Aeris NEXT
    • Contacts: Bathroom switch input contact, Standby switch / Fire alarm input contact, External filter input contact
    • 4x 0-10V configurable sensor input contacts
    • Error output contact
    • Post-heater 0-10V output contact and temperature sensor input contact
    • ComfoFond L Q 230V output contact and sensor input contact*
    • Sub-soil heat exchanger valve 230V output contact and sensor input contact*
    • * Requires Option Box V2 with pre-installed 230V power cable.
