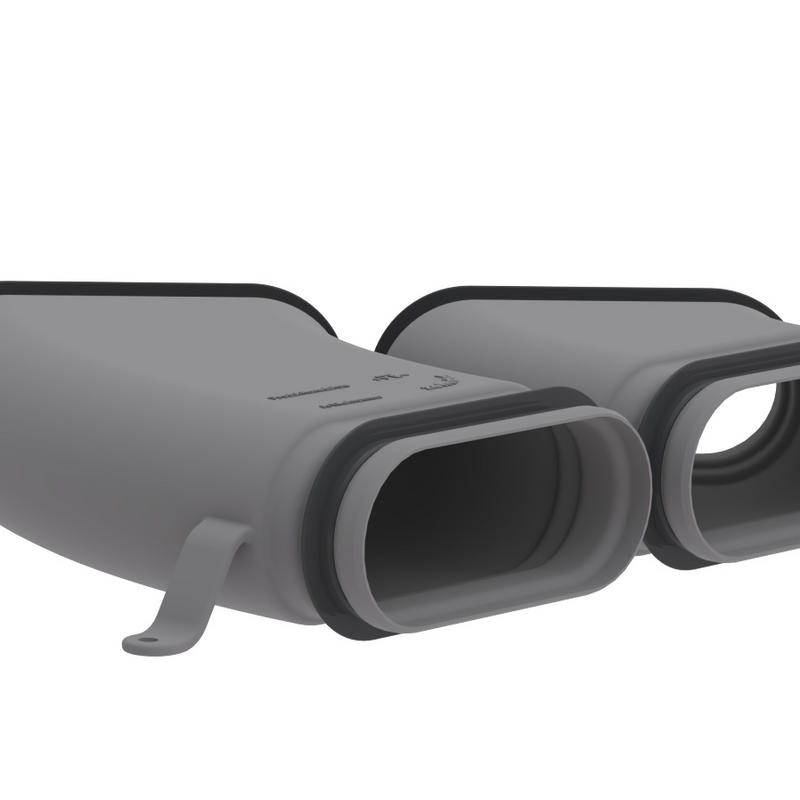

Zehnder CK300 rigid twin duct, horizontal 45° bend

Data Table

Label	Value
Catalogue number	990322050
GTIN	7613367207291
Outer surface protection	Untreated
With push-on clamp
Air tightness class according to EN 1751	None
Equivalent duct diameter	160 mm
Bend angle	45 °
With pre-mounted seal
Production method	Other
Connection 2	Insert end
Connection 1	Insert end
Outside colour	Grey
Anti-bacterial model
Wall thickness duct	2.5 mm
Material quality duct	Polyethylene (PE)
Change of direction	Horizontal
Change of direction	Horizontal
Insert length	40 mm
Bend angle	45 °
Connection 1	Insert end
Air tightness class according to EN 1751	None
Insert length	40 mm
Equivalent duct diameter	160 mm
Inner surface protection	Untreated
Perforated inner wall
Material quality duct	Polyethylene (PE)
Outside colour	Grey
With pre-mounted seal
With push-on clamp
Surface protection internal	Untreated
With push-on profile
Embeddable in concrete
Working length connection 1	80 mm
Nominal duct height	70 mm
Nominal duct width	326 mm
Working length connection 2	80 mm
Connection 2	Insert end
Model	Uninsulated duct
Nominal duct height	70 mm
Bend model	Smooth bend
Nominal duct width	326 mm
Outer surface protection	Untreated
Material duct	Plastic
Production method	Other
Model	Uninsulated duct
Wall thickness duct	2.5 mm
Working length connection 1	80 mm
With push-on profile
Working length connection 2	80 mm
Perforated inner wall
Bend model	Smooth bend
Embeddable in concrete
Material duct	Plastic
