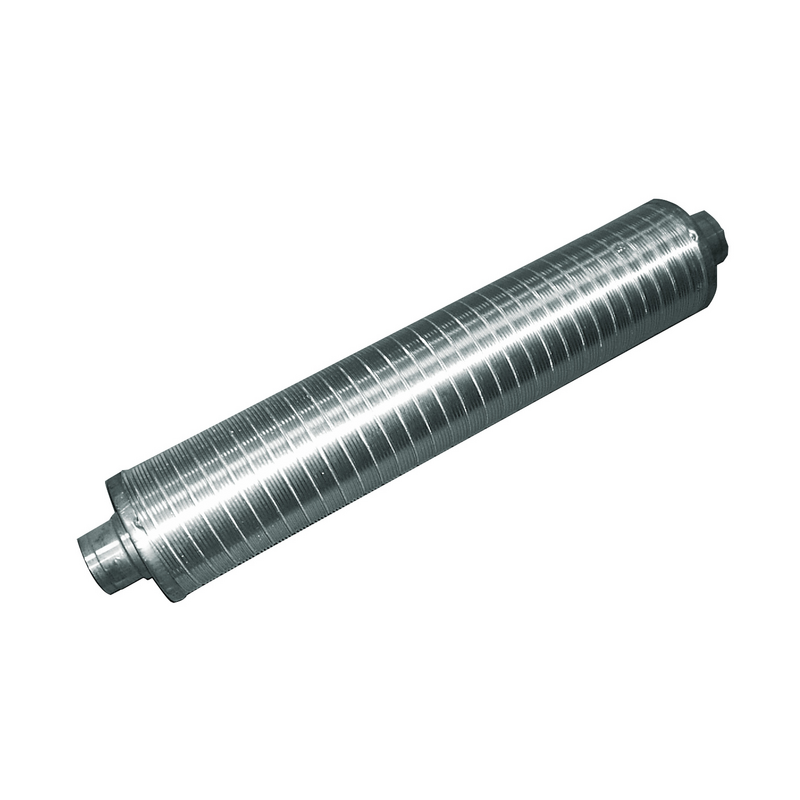

Attenuator, Flexible, ø 125mm, length 500mm

Data Table

Label	Value
Catalogue number	990318036
GTIN	7613367056240
Damping 2000 Hz	33 dB
With core/cone
Max. medium temperature (continuous)	+140 °C
Connection 2	Insert end
Material inner pipe	Other
Free passage	100 %
Inner diameter	125 mm
Damping 500 Hz	31 dB
Damping 250 Hz	34 dB
Damping 125 Hz	19 dB
Damping 4000 Hz	30 dB
Flexible
Outer diameter	175 mm
Working length	1000 mm
With pre-mounted seal
Insulation thickness	25 mm
Connection 1	Insert end
Vapour inhibition layer
Insulating material	Glass wool
Damping 8000 Hz	16 dB
With protection cloth
Damping 63 Hz	13 dB
Material outer pipe	Aluminium laminate
Damping 1000 Hz	32 dB
